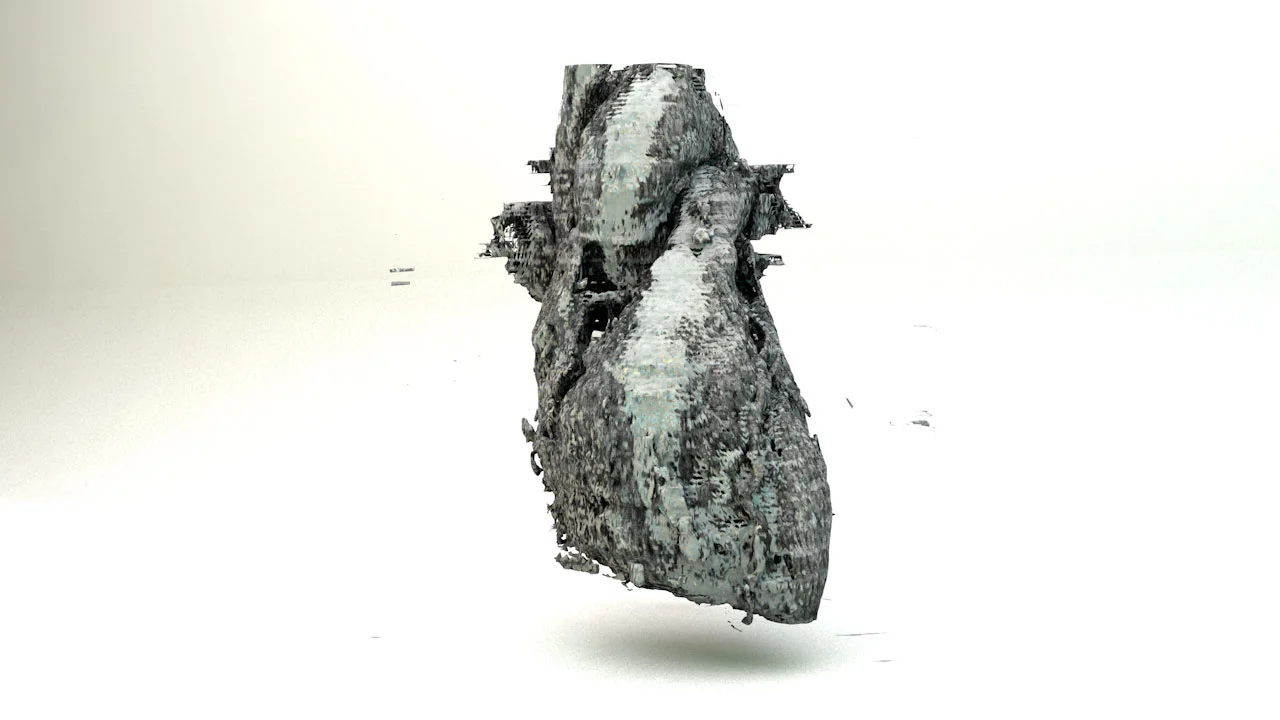

Model extracted from CT data
To ensure the accuracy of the heart model it was extracted from raw CT scans using Horos.
The extracted model was brought into ZBrush, surface structures and lumenal structures were separated and cleaned up.

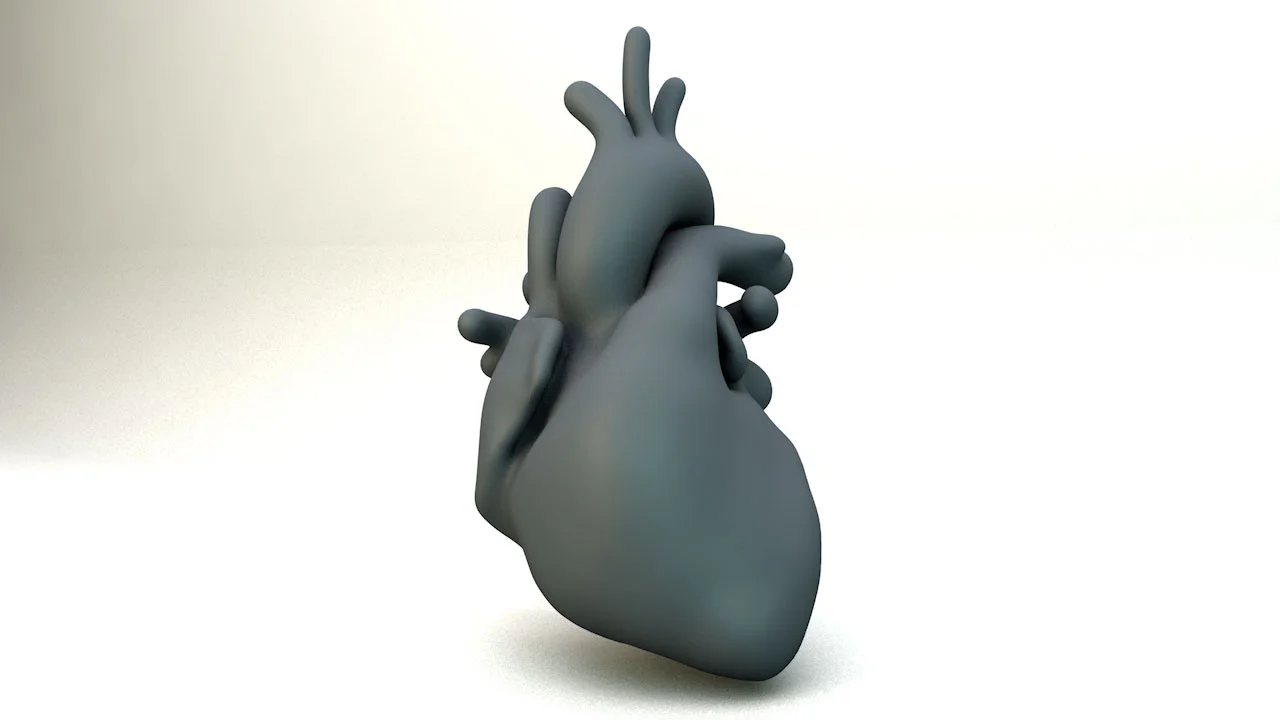

Surface after content expert review
The model was further refined and corrected based on recommendations from anatomists at the University of Toronto

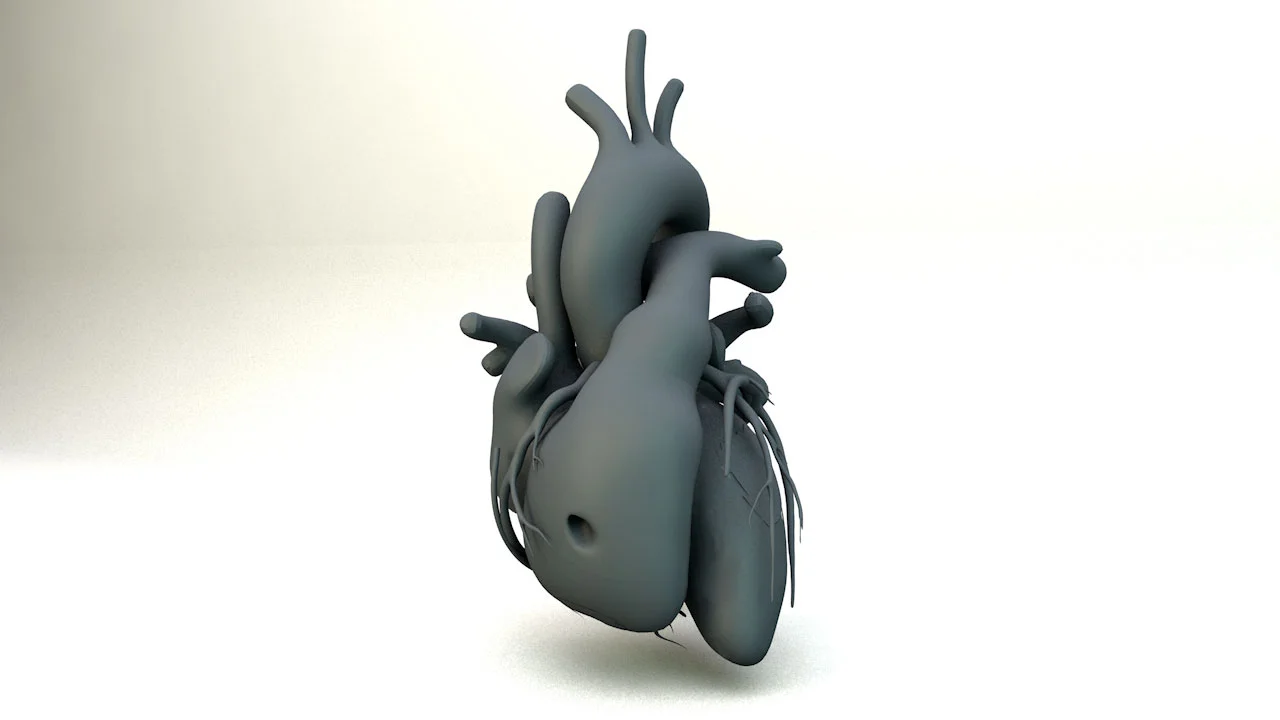

Lumen after content expert review

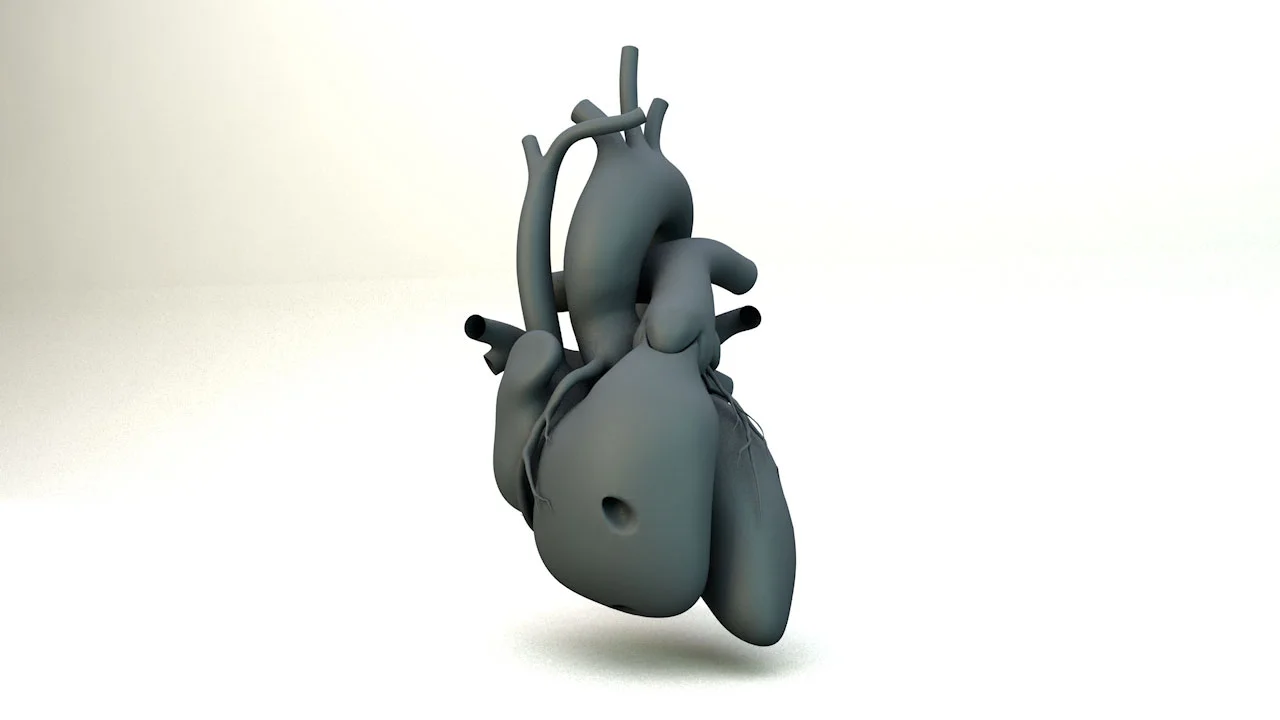

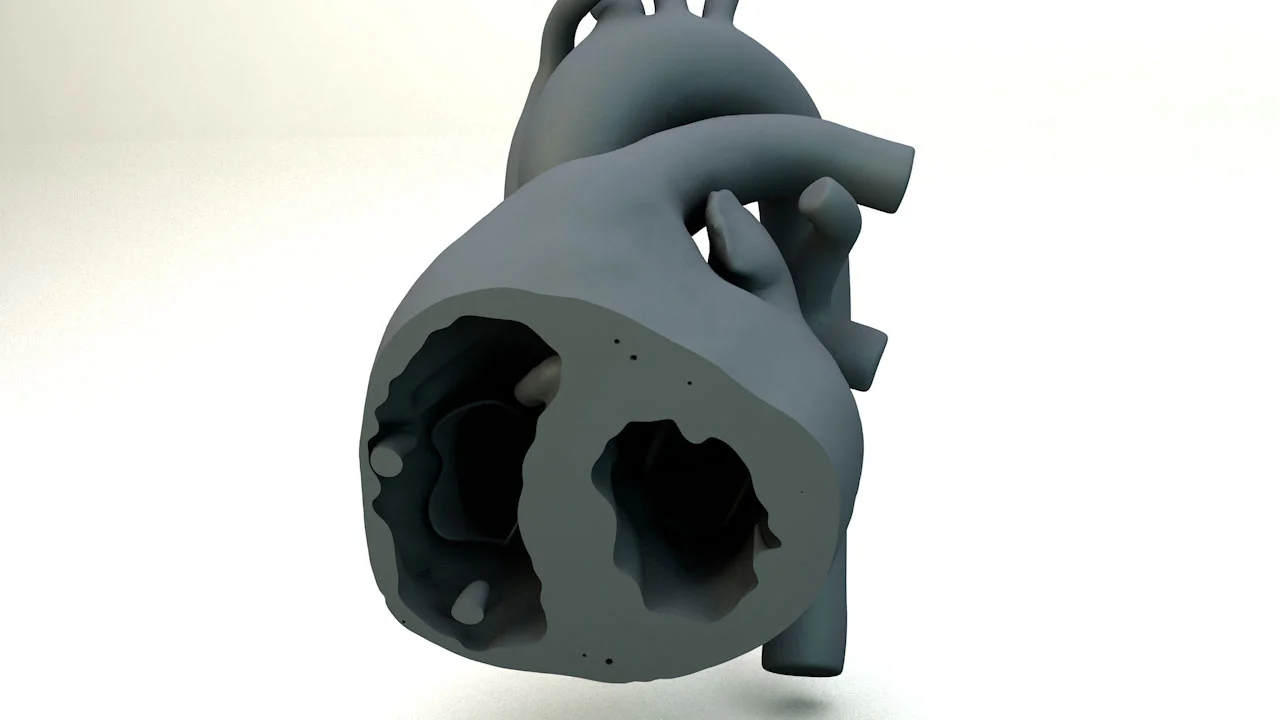

Correcting the thickness of the Myocardium
The final round revisions to the model were meant to ensure that the internal and external models related to one another correctly to match the muscular walls of the heart.
Final surface model
After revision by four different content experts, painted and textured in ZBrush
